1.13
0.44
0.69
MAX
5/8"
HEX
0.88
NOTES:
3/8-32 UNEF-2B
THREAD
1. DIMENSION WITH PART OPEN AS SHOWN.
2. MATERIALS:
BASE & COVER - STEEL, BRIGHT NICKEL PLATED
GASKET - SYNTHETIC RUBBER
NUT - COPPER ALLOY, NICKEL PLATED
TORSION SPRING - STAINLESS STEEL
AXLE - COPPER ALLOY, NICKEL PLATED
3. HEX NUT SHIPPED UNASSEMBLED.
4. THIS PRODUCT IS RoHS COMPLIANT.
0.386
REF
0.156 APPROX
0.44
MAX
SEE NOTE 1

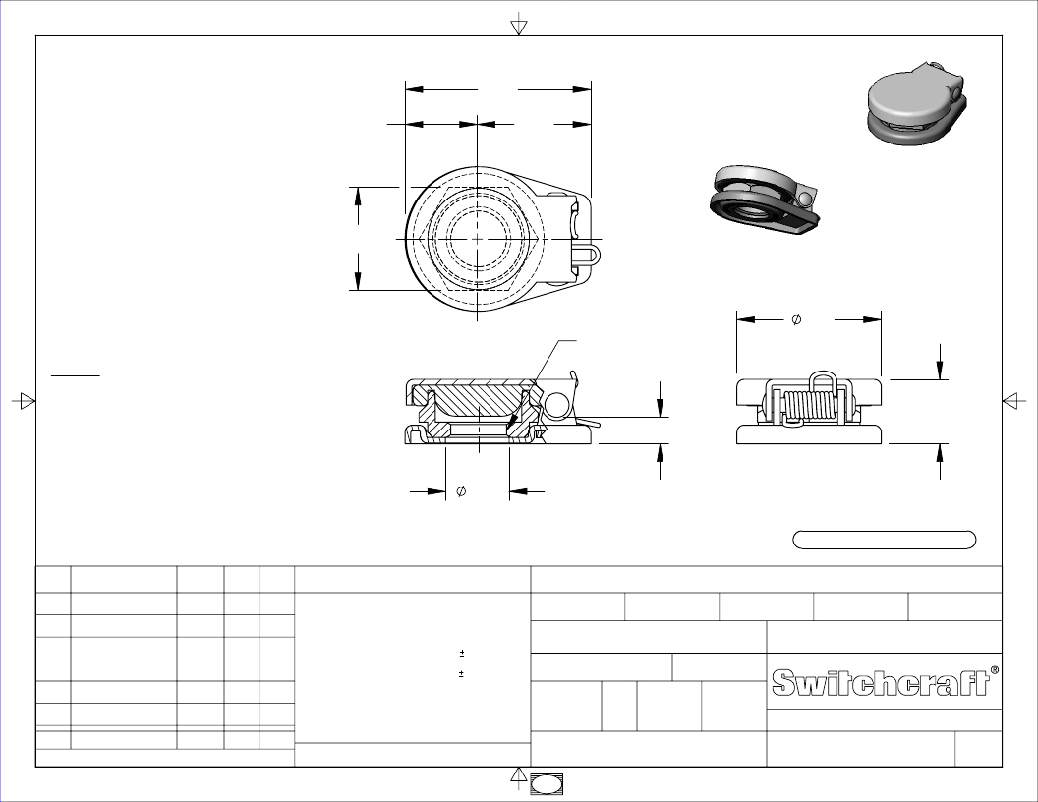

CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
SIZE
WIDTH
MULT
LBS/M
TEMPER
1. ALL DIMENSIONS IN INCHES
FINISH
MATERIAL
F
26771
05/13/11
JEB
TJK
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
0.005
SPEC No.
FIRST USED ON
SCALE
1.75:1
SPEC No.
E
D
23793
22434
9-19-07
11-9-98
RF
RC
TJK
JF
DATE DRAWN
4-21-64
BY
IRT
CHKD
CJW
4-22-64
APVD
LG
4-23-64
SHEET
1
OF
1
F
REV
ECO NUMBER
REVISIONS
DATE
BY
APVD
DO NOT SCALE DRAWING
SolidWorks CAD File
NAME
A
JAX COVER, RoHS
PART No.
512
REV
